© 2023 Peng J. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.This paper focuses on the structural properties and interface behavior of TX-5, TX-114, and TX-100 molecules at the air/water interface. The results of the density profile show that the polar O atoms of the three TX molecules are basically located on the water surface, and the whole TX molecule is almost parallel to the water surface. The results of the order parameters show that the order parameters of the three TX molecules on the interface are similar and relatively ordered. The TX-100 molecule has the largest gauche defect value. The hydration number of TX molecules at the interface was similar to that of TX molecules in micelles, and the hydration number of PEO chains showed obvious zigzag changes. The research of this paper provides a reference for the further development of TX series micellar and surfactant molecules in the field of pharmaceutical and daily use.
Surfactant is first adsorbed to the interface before forming micelles in an aqueous solution and has a variety of surface active properties, including foaming properties, fiber cleaning properties, water hardness, etc. [1]. Adsorbable properties on solid-liquid surfaces are important for many industrial and technical processes (such as processing washing products, water treatment, enhanced oil recovery, etc.) [2], and are also widely used at the gas-water interface, such as food production, foam fractionation, and fermentation processes [3]. Quite a few technicians [3-7] use the adsorption properties of surfactants at the air/water interface to reduce surface tension, control foaming, foam stability, etc. Foam behavior is fundamentally dependent on the properties of the surfactant added [8] and especially its structure [9,10]. Different types of surfactants have different molecular structures, and most of the hydrophilic groups in the structure of non-ionic surfactants are Polyethylene Oxide (PEO) chains [11]. In the same series of non-ionic surfactants, different chain lengths will affect their adsorption properties [8]. The Triton X series is a major class of non-ionic surfactants, TX-114 is one of the most commercially and industrially used cleaners and emulsifiers [1] and TX-100 is also of industrial importance in the preparation of foams [12], so it has been widely studied and used.
Relevant experimental studies have shown that the adsorption effect of surfactants is an important factor in determining important properties such as foaming, wetting, emulsification, solubilization, drug delivery, and biological activity [1]. Fainerman, et al. [13] studied the adsorption kinetics of TX-100 at the water-air interface using the maximum bubble pressure method, the inclined plate method, and the oscillating jet method and showed that all PEO chains can be located in the surface layer when the adsorption capacity or surface pressure of TX-100 is very small. The dynamic behavior of many systems (such as foam stability, etc.) is controlled by the adsorption of surfactant at the air/water interface [14]. For example, Agneta, et al. [15] found in the experiment that foam stability is generated by the presence of TX-100 surfactant at the air/water interface. Computer simulation is an important tool for studying interface systems, which can obtain more information about the dynamics and structural properties of interface problems at the molecular level, which is not easy to obtain from experimental technical means [16]. As early as 1994, Tarek, et al. [17] conducted MD simulations of the structure and behavior of tetracyl-trimethyl ammonium bromide (C14TAB) at the air/water interface. They analyzed the structure of hydrocarbon chains and found that the chains were highly disordered and their internal structure depended on vertical position relative to the interface. Later, Xu, et al. [18] also used the MD simulation method to study the influence of Polyvinyl Alcohol (PVA) molecules on the structure of sodium dodecyl ether sulfate containing a polyethylene oxide group (SLE1S) adsorbed on the air/water interface. The results showed that increasing the surface density of SLE1S would increase the interface thickness. And forces SLE1S and PVA molecules to migrate to varying degrees into the air (actually the vacuum).In addition, Chanda, et al. [19] studied the adsorption properties of monomolecular dodecyl hexaethylene glycol (C12E6) at the air/water interface by using MD simulation at constant volume and temperature. The study showed that due to the strong interaction between surfactants and water, its long polar head group preferred the water layer. Other researchers have explored the related properties of TX-100, another very important nonionic surfactant, at the air/water interface, For example, Parra, et al. [12] studied the effect of TX-100 on the interfacial activity of ionic surfactants SDS, CTAB and SDBS at the air/water interface by using MD simulation method and found that the presence of TX-100 at the air/water interface would reduce the interface thickness of water layer.
In order to make full use of the interfacial activity of the TX family of surfactants, the structural characteristics of TX-5, TX-114 and TX-100 molecules with different PEO chain lengths at the air/water interface and their interactions with water were investigated by molecular dynamics simulation. The differences and connections between the three systems were compared in various aspects.
The chemical structures and basic information of Triton-X are from the ATB force field.
Firstly, Gaussian 09 software [20] was used to optimize the geometric structure of TX-5, TX-114, and TX-100 molecules, and the basic group was B3LYP/6-31g(d). The structure is then submitted to ATB [21,22] to generate bond and non-bond resultant field parameters. This parameter is compatible with the Gromos 54A7 force field parameter. Water molecules use an SPC model.
The simulation uses a 10×10×30 nm3 rectangular box with the Z axis perpendicular to the interface. In preparation for the initial configuration of the simulation, a water box (10×10×10 nm3) was placed in the center of the box and filled with water molecules. Then, two identical TX molecules are placed on both sides of the water box to form the water-air interface. The size of the upper and lower air boxes on both sides is 10×10×10 nm3, and the TX molecules are perpendicular to the water surface, which is the same for all three systems. The reason for placing the same TX molecule in each of the upper and lower interfaces is to facilitate comparison.
All simulations were calculated using the Gromacs 2021 software package [23]. The steepest descent method is used to minimize the energy of the initial configuration. Then, the MD trajectory was obtained after 200 ns NVT simulation at 298 K temperature. In this paper, the trajectory of the last 30 ns is used to analyze the results.
Hydrogen bonding was restricted by the LINCS algorithm [24]. Meanwhile, periodic boundary conditions were used in all directions, and a time step of 2 fs was used for all simulated environment variables. The simulated environment is closest to the experimental conditions. VMD [25] program was used to realize all visualization of MD locus.
For comparison, the TX molecules on the upper and lower interfaces are placed in the same position, with the polar head facing the water environment and the non-polar tail facing the air environment. Similarly, Chen Yijian, et al. [26] used the MD simulation method to study the behavior characteristics of the double-chain anionic surfactant sodium 1-alkyl - decyl sulfonate at the gas/liquid interface and also placed the surfactant molecules on the upper and lower sides of the water molecular layer.

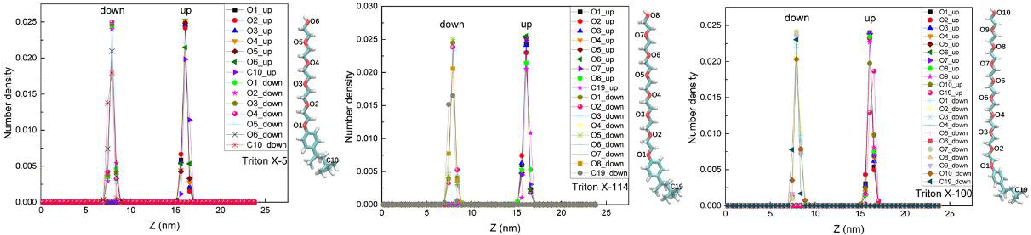

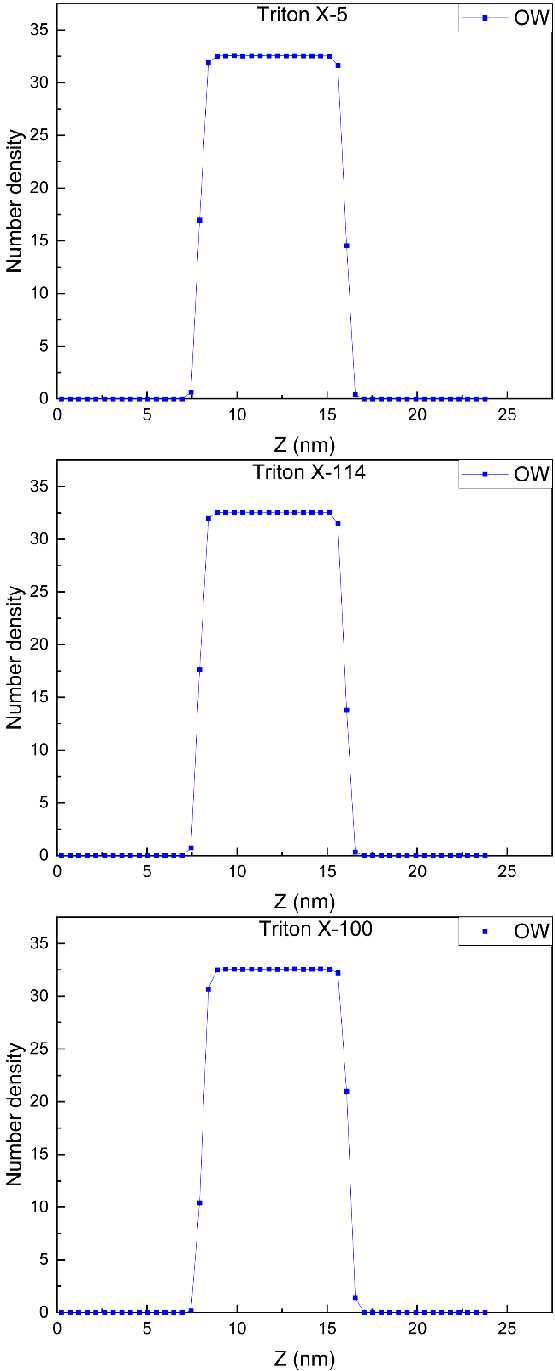

In the studies of Liu, et al. [27] and Parra, et al. [12], the distribution of atoms, ions, or polar groups in different positions of the surfactant molecules under study on the water surface was determined by calculating the density profile along the Z-axis. In this paper, the density distribution of TX molecules on the interface was characterized by calculating the number densities of O atoms at different positions in three TX molecules and those of tail carbon and water molecules dependent on the Z axis, as shown in Figures 1,2.
As can be seen from the two diagrams, the O atom and the tail carbon atom in the TX-5 and TX-114 molecules are both in water and on the surface of the water. This phenomenon is shown at both the upper and lower interfaces. Most of the tail carbon atoms in the TX-100 molecules at the upper interface were exposed to air, while the rest of the O atoms and the atoms studied in the TX-100 molecules at the lower interface were immersed in the water. This is consistent with Fainerman, et al. [13] ‘s conclusion that the adsorption capacity of TX-100 at the air/water interface is so small that all PEO chains can be located in the surface layer. The number density of O atoms in the polar head hydroxyl group of TX molecules at the upper and lower interfaces is lower than that of other O atoms in the water, and this phenomenon occurs in all three systems. In addition, the number of water molecules on the interface of the three systems is greatly reduced, and the inflection points of decline correspond to the peaks of O atoms in different positions of TX molecules, which means that polar O atoms occupy a certain spatial position in the water surface. This result is similar to the simulation result obtained by Parra, et al. [12] that the existence of TX-100 at the air/water interface reduces the interface thickness of the water surface. In addition, the number density peaks of these atoms selected in the three TX molecular systems appear in very uniform positions, and the number density peaks of these atoms selected in each system are basically the same in the upper and lower interfaces, about 0.025.
The chain structure of surfactant molecules is usually characterized by order parameters, chain length, chain orientation, and Gauche defects. In this study, these indicators were measured to characterize the structure of three TX molecular chains at the air/water interface.

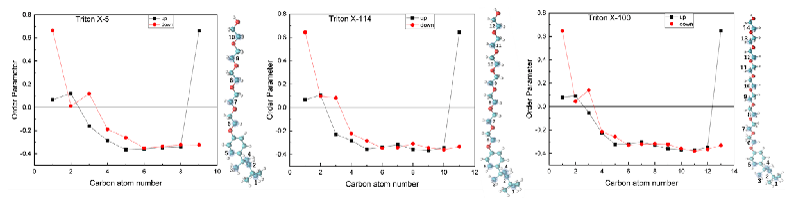

Order parameter: In order to characterize the order degree of TX molecules on the interface, the order parameters of C atoms in different positions of TX molecules were calculated in this paper. One of the C atoms with similar chemical environments was selected for study, as shown in Figure 3. The order parameters are calculated using this formula.
Where, is the included Angle between the Z-axis and the molecular axis of the simulated box, defined as the vector from Ci−1 to Ci + 1. The mean value over time is shown in parentheses. The range of the order parameter is [-1/2,1]. The larger the value, the higher the disorder of the chain (the more parallel to the z-axis), and the smaller the value, the more ordered (the more perpendicular to the z-axis). In the case of isotropic orientation, the value is zero [27]. As shown in the Figure, the chain order degree of TX-5, TX-114, and TX-100 molecules all showed a similar change trend. On the whole, TX molecules were relatively ordered on the interface and were almost perpendicular to the Z axis. The order parameter values of the three systems are TX-5, TX-114, and TX-100.
Length of surfactant chain: The length of the TX molecular chain is one of the basic characteristics of chain structure. This section determines the distance between the O atom at different positions in the TX molecule and the H atom in the polar head hydroxyl group relative to the C atom in the terminal methyl group, as shown in Figure 4. TX-5 molecules at the upper interface showed an upward trend from O1 to O4, a downward trend from O4 to O6, and a weak increase in H42, indicating that the molecular chain had obvious bending and presented a symmetrical chain structure. The TX-5 molecule in the lower interface increased significantly from O1 to O6. The TX-114 molecule showed a nearly uniform upward trend from O1 to O8. The length variation trend of the TX-100 molecule increases gradually in the upper interface but fluctuates to a certain extent in the lower interface. The same TX molecule has different lengths on both the upper and lower water surfaces. In addition, the length of the three TX molecules at the interface is smaller than that of A free molecule optimized by quantum chemistry (26.073 Å for TX-5, 33.028 Å for TX-114, and 38.282 Å for TX-100).
Orientation of surfactant chain: In order to further explore the orientation of the TX molecular chain on the interface, this paper calculates the Angle between the Z axis and the vector from the O atom at different positions to the C atom of the terminal methyl group in the TX molecule, as shown in Figure 5. The angular distribution of TX-5 and TX-114 molecules increases at the upper interface as the O atom gets closer and closer to the polar head position, but the opposite is true at the lower interface. The Angle distribution of TX-100 molecules increased to a stable and then increased at the upper interface, and vice versa at the lower interface. The included Angle between the whole TX molecule (the vector where the O atom in the polar head hydroxyl group points to the terminal C atom) and the Z axis is greater than 80° in the three systems, which is consistent with the conclusion obtained in section 3.2.1 that the TX molecule is almost perpendicular to the Z axis.

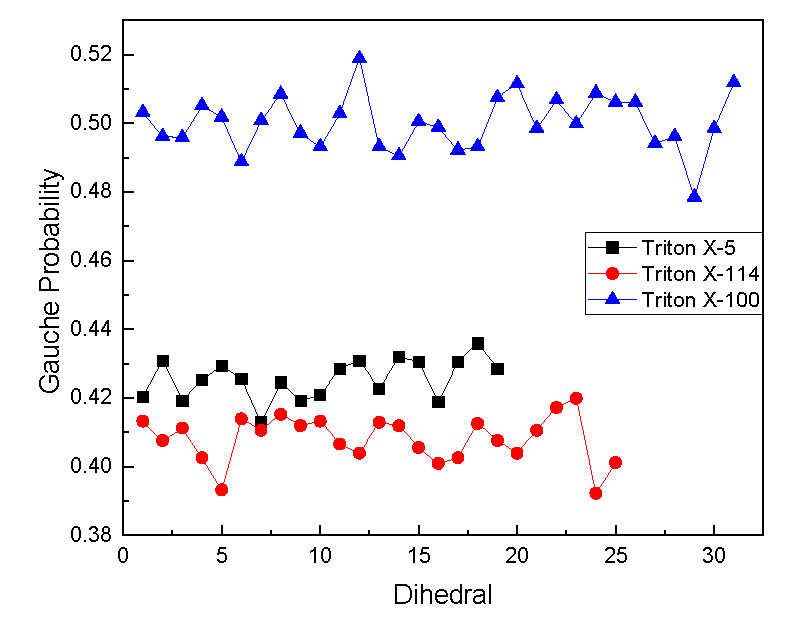

Gauche defects: In order to further characterize the conformation of the TX molecular chain on the interface, this paper explored by calculating the probability distribution of gauche dihedral Angle in the TX molecule (Figure 6). As can be seen from the Figure, the probability value of gauche in the three systems decreases according to the sequence TX-100>TX-5>TX-114, indicating that the TX-100 molecule is the most stable on the interface. It is worth noting that the probability value of gauche in each system presents a wavy trend from the terminal C position to the polar head C position. The morphological structure of a single TX molecule at the air/water interface provides a certain reference for the morphological and structural characteristics of multiple TX molecules at the interface.
In this section, the hydration number, hydrogen bond number, and hydrogen bond relaxation time of atoms in different positions of three TX molecules were calculated to characterize the interaction of each TX molecule with water at the air/water interface. In order to increase the reliability of the simulation results, the same TX molecule’s interaction with water at the upper and lower interfaces was also characterized in this paper.
Hydration number: In this paper, the hydration number of C and O atoms in different positions of TX-5, TX-114 and TX-100 surfactant molecules was calculated to characterize the interaction between TX molecules and water at the interface. One of the C atoms with a similar chemical environment is selected for study, as shown in Figure 7. The hydration number is obtained by calculating the integral of the Radial Distribution Function (RDF) of the selected water molecules around the C or O atom in the range of 0.35 nm [28,29]. As shown in the Figure, the hydration number of the three is basically the same. The hydration number of the octyl chain in the whole TX molecule is the lowest, all of which are less than 0.5, the hydration number of the benzene ring increases, and the hydration number of the PEO chain shows an obvious zigzag trend, that is, the hydration number of the O atom in each EO unit is much larger than that of the C atom, and their value is not more than 3. The hydration number of the polar head hydroxyl group reached the maximum (>8), which was largely due to the different steric hindrances of atoms at different positions. This is similar to the trend of hydration number of the three TX micelles described in section 3.3.1. In addition, the hydration number of the EO unit in the TX-5 molecule decreases as it gradually approaches the polar head, and the hydration number of the EO unit in the TX-114 and TX-100 molecules fluctuates slightly. This phenomenon is due to the different distribution of TX molecules in water, the different conformation of the chains, and the different amounts of contact with water molecules [30-40]. It can be seen that the three TX molecules interact strongly with water, especially the hydration number of the PEO chain is significantly higher than that of the PEO chain in the micellar formation, that is, a single TX molecule is not easy to bubble at the air/water interface and its bubble stability is relatively low.

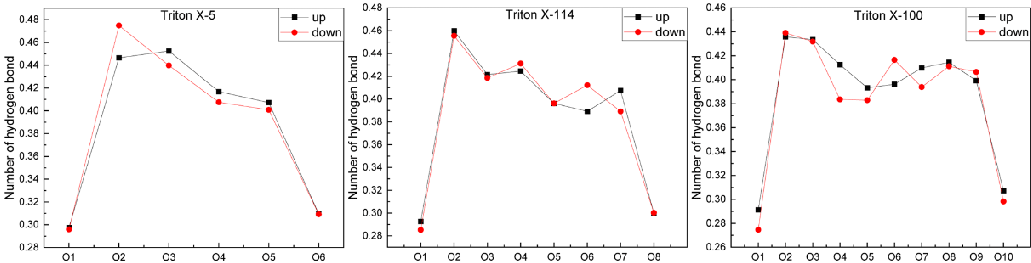

Hydrogen bond number: The geometric criterion for the existence of hydrogen bonds used in this paper is that the distance between donor and recipient pairs is within 3.5 Å, and the Angle between hydroxyl and oxygen atoms is less than or equal to 30°. Figure 8 shows that the hydrogen bond number of O atoms at different positions of the three systems is “small at both ends and large in the middle”. Moreover, the hydrogen bond number of the O atom in the middle of TX-114 and TX-100 molecules fluctuates significantly, which is similar to the trend of the hydration number of the O atom in Section 3.3.1. Surprisingly, the hydrogen bond number of O atoms in the polar head hydroxyl group decreases significantly. This means that very few of the water molecules it mixes with can form hydrogen bonds with it. In the TX-5 system, the hydrogen bond number of the O1 atom is the lowest, about 0.3, and the hydrogen bond number of the O2 atom increases significantly, reaching 0.475. Then, the hydrogen bond number of the O6 atom decreases, reaching 0.31. In the TX-114 system, the O1 atom also has the lowest hydrogen bond number, about 0.29, and then the hydrogen bond number increases significantly, reaching 0.46 for the O2 atom and 0.3 for the O8 atom. In the TX-100 system, the hydrogen bond number of the O1 atom is 0.27-0.3 and then the hydrogen bond number increases significantly, reaching 0.44 to the O2 atom, and the hydrogen bond number of the O10 atom is about 0.3 [41-80].
Hydrogen bond relaxation time: In order to further analyze the hydrogen bond kinetic properties of TX molecules at the interface, the relaxation times of hydrogen bonds between O atoms and water molecules at different positions in TX molecules and between the outermost hydroxyl group and O atoms in water molecules were calculated (Figure 9). As can be seen from the Figure, the decay curves of the three systems gradually become gentle when they reach 10 ps. Among them, the decay curves of the outermost hydroxyl group and the O atom in the water molecule of the TX-5 and TX-114 systems decline the fastest, followed by that of the polar head O atom and the water molecule. In the TX-100 system, the decay rates of the two corresponding decay curves are similar and the fastest, indicating that it is difficult for polar head O atoms to form hydrogen bonds with water molecules, which is consistent with the result in section 3.3.2 that the number of hydrogen bonds of polar head O atoms is very low. In addition, the decay curve of the O1 atom connected with the benzene ring and water molecule also showed a very fast decay rate. The decay rate of the decay curve between the O atom and the water molecule in the remaining position is relatively slower, so the number of hydrogen bonds formed is higher [81-132].
The structure of three TX molecules with different PEO chain lengths at the air/water interface was studied by molecular dynamics simulation. Simulation results showed that the number density of O atoms in the polar head hydroxyl group of TX-5, TX-114, and TX-100 molecules was lower than that of other O atoms and occupied a certain spatial position in the water surface. In addition, the three TX molecules are relatively ordered on the interface, and all are almost perpendicular to the Z axis. The Angle between the TX molecule and the Z axis is greater than 80 degrees in all three systems. Each of the three TX chains has a different structure at the air/water interface and is somewhat shorter in length. The probability value of gauche in the three systems decreased by this sequence TX-100>TX-5≈TX-114. Notably, the number of hydrogen bonds of the O atom in the polar head hydroxyl group decreased significantly, meaning that very few water molecules could form hydrogen bonds with it. This study has a certain guiding significance for better control of the foaming property and foam stability of TX molecules. In addition, the study of TX molecules at the air/water interface provides a certain reference for the exploration of TX molecules forming micelles when they reach the critical micelle concentration.
